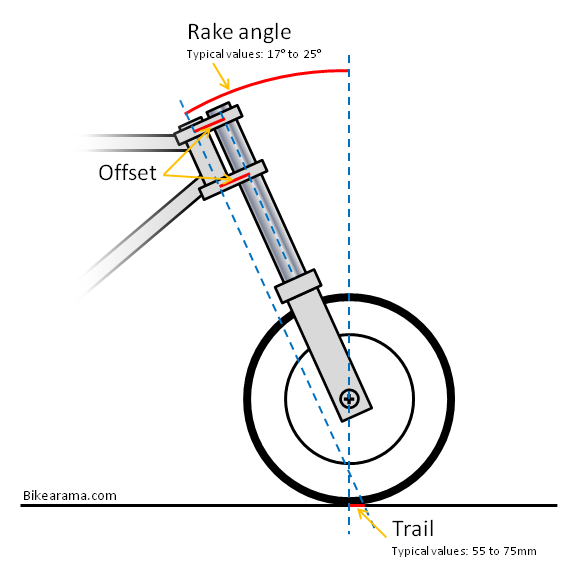

Motorcycle Rake And Trail Diagram : A Quick Guide to Motorcycle Rake, Trail and Offset, Part 1 ... : Most manufacturers have their own secret recipes for making their bikes feel or behave in a certain way.. And the concepts, while abstract, make perfect sense when you see them. The combination of motorcycle rake and trail is a critical success factor to your motorcycle's rideability. Advanced rake and trail calculator. Rake refers to the angle between the front forks and the ground or, in case we are talking about just a frame, the angle between the head tube and the ground. The difference between where the first line and the second line intersect the ground is called trail.

Rake the rake is the angle formed between the neck on the frame of a bike and a vertical line. Bicycle and motorcycle geometry is the collection of key measurements (lengths and angles) that define a particular bike configuration. We aren't going to basics: Pen and ink drawings, from motorcycle and motorcycling.i'm back on.,1941 harley davidson wl restoration : If you ask, you feel like you're getting sent on some sort of snipe hunt.

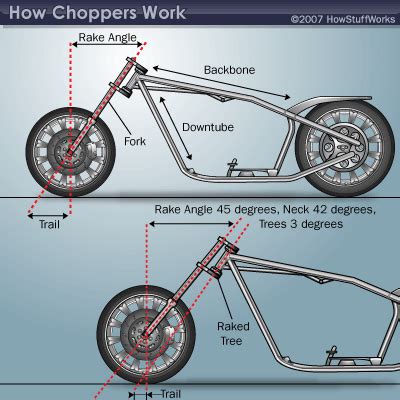

The TS250 Project: Rake and Trail from 1.bp.blogspot.com

We are going to simplify it by looking at basic rake and trail, plus wheelbase. Rake must be input in degrees, as measured from the vertical. A larger rake angle means the motorcycle will tend to stay moving in a straight line while traveling. Primary among these are wheelbase, steering axis angle, fork offset, and trail. We aren't going to basics: Rake and trail figures provide a general insight into a bike's handling characteristics. Rake refers to the angle between the front forks and the ground or, in case we are talking about just a frame, the angle between the head tube and the ground. Well, to understand these concepts fully we have to first understand how it's all measured.

Understanding a motorcycle's rake and trail.

Tip #71 from the pages of the total motorcycling manual. In this case the diagram depicts a 'softail' frame where the rear tire 'swingarm' pivots about a shaft that rake and trail 101 rake is a term used to describe the angular relationship between the bikes steering stem. All you really need is some trigonometry and a nice diagram. The 411 on rake and trail. We say general here because how a bike steers is a combination of rake, trail, chassis balance, centre of gravity, mass centralization, wheelbase and. Front tire radius and offset can be in any units, provided they are the same for both measurements; Essentially, trail is what gives our bikes directional stability at anything above a walking pace. Special thanks to sean from empire engineering for. We are going to simplify it by looking at basic rake and trail, plus wheelbase. Imagine the same yardstick, held up against the bike's axel, as above. A shorter rake angle will allow the direction of travel to be changed with less effort from input on the handlebars. Rake the rake is the angle formed between the neck on the frame of a bike and a vertical line. While some of you may already understand rake and trail, newer.

Rake greatly depends on the type of motorcycle you're riding. And the concepts, while abstract, make perfect sense when you see them. Special thanks to sean from empire engineering for. In this video we will show you the basic steps of how to modify the rake and trail of your motorcycle. There is some info on wiki that links to other sources.

Rake and Trail Made Easy! from www.custom-choppers-guide.com

Cannondale's murray washburn explains how rake and trail impact a bike's handling.to the point is a new series of articles that explains the ins and outs of your bike every tuesday. When looking at motorcycle specifications, the terms rake and trail often are listed. Peter fonda and dennis hopper with jack nicholson in tow looking for reputable custom builders like big dog motorcycles or any one of a dozen other frame builders are your best source of advice on this subject. Rake greatly depends on the type of motorcycle you're riding. If you ask, you feel like you're getting sent on some sort of snipe hunt. Every single degree of inclination can change the way your motorcycle handles. Motorcycle suspension systems can be very complex, and involve numerous variables such as wheelbase, weight, ride height, tire size, suspension sag, and engine placement, in addition to rake and trail. Not to worry, i am here to share knowledge.

Extended front ends, raked frames, easy rider.

Rake refers to the angle between the front forks and the ground or, in case we are talking about just a frame, the angle between the head tube and the ground. Rake must be input in degrees, as measured from the vertical. Well, to understand these concepts fully we have to first understand how it's all measured. And the concepts, while abstract, make perfect sense when you see them. This page is about rake and trail diagram,contains the velobanjogent: Every single degree of inclination can change the way your motorcycle handles. Pen and ink drawings, from motorcycle and motorcycling.i'm back on.,1941 harley davidson wl restoration : First we are going to say the forks go through the headstock, like a pushbike. If you ask, you feel like you're getting sent on some sort of snipe hunt. Without it, the front wheel would try to revolve around itself like a broken shopping cart caster at the slightest provocation making the bike unrideable. Is the optimal rake and trail different if i convert my bike to a trike? Start date feb 27, 2008. We are going to simplify it by looking at basic rake and trail, plus wheelbase.

Rake the rake is the angle formed between the neck on the frame of a bike and a vertical line. Front tire radius and offset can be in any units, provided they are the same for both measurements; Rake refers to the angle between the front forks and the ground or, in case we are talking about just a frame, the angle between the head tube and the ground. The offset does not have to be included in all models, but where it is applicable, it helps to regulate the riding attributes of the bikes in ways that are not easy to achieve. Where it touches the ground is one measurement.

Dave Moulton's Bike Blog: Trail, fork rake, and a little ... from bp1.blogger.com

And the concepts, while abstract, make perfect sense when you see them. Extended front ends, raked frames, easy rider. Now all these years later when you finally got the money to build your dream bike. Primary among these are wheelbase, steering axis angle, fork offset, and trail. These parameters have a major influence on how a bike handles. The rake and trail calculator will calculate mechanical and normal trail based on values for rake, offset and front tire radius. This page is about rake and trail diagram,contains the velobanjogent: Conversely, a larger rake angle requires more effort to turn but tends to make the motorcycle more stable at high speeds and helps maintain a straight.

We always see rake and trail figures in spec sheets.

While some of you may already understand rake and trail, newer. Most manufacturers have their own secret recipes for making their bikes feel or behave in a certain way. Cannondale's murray washburn explains how rake and trail impact a bike's handling.to the point is a new series of articles that explains the ins and outs of your bike every tuesday. Without it, the front wheel would try to revolve around itself like a broken shopping cart caster at the slightest provocation making the bike unrideable. Advanced rake and trail calculator. The rake and trail calculator will calculate mechanical and normal trail based on values for rake, offset and front tire radius. Rake, trail, and offset are the most vital concepts relating to the rideability of any motorcycle. A shorter rake angle will allow the direction of travel to be changed with less effort from input on the handlebars. A larger rake angle means the motorcycle will tend to stay moving in a straight line while traveling. What does geometry mean and how do rake, trail and suspension settings affect a motorcycle? These parameters have a major influence on how a bike handles. Where it touches the ground is one measurement. Although the front end of a bicycle is quite simple compared to many other types of rake helps your steering system self center, which is why some cycles can be easily ridden with no hands, while others with less rake need to be moving.

Now all these years later when you finally got the money to build your dream bike motorcycle rake and trail. Motorcycle handling is made complex by.
